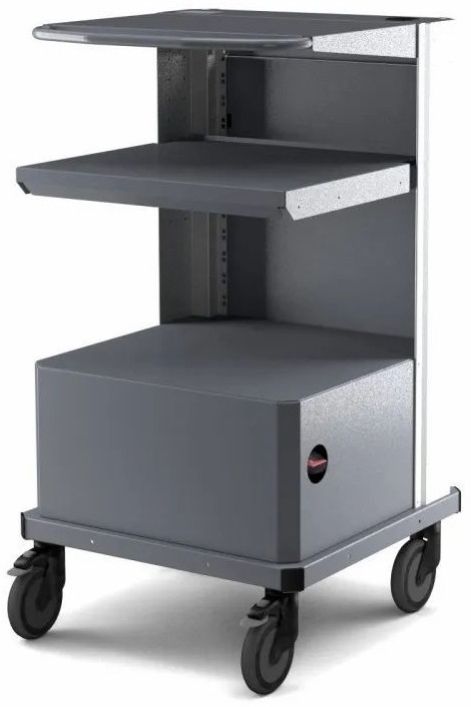

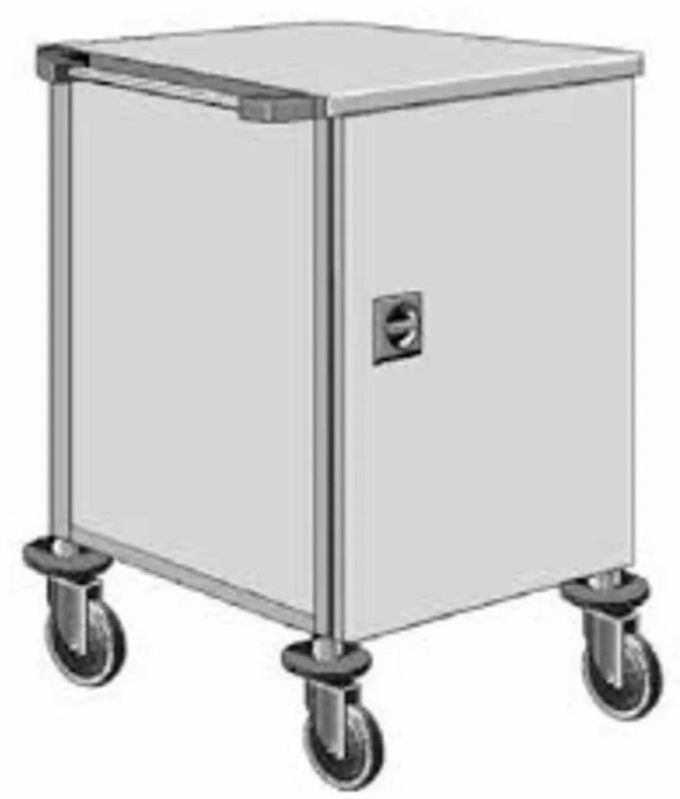

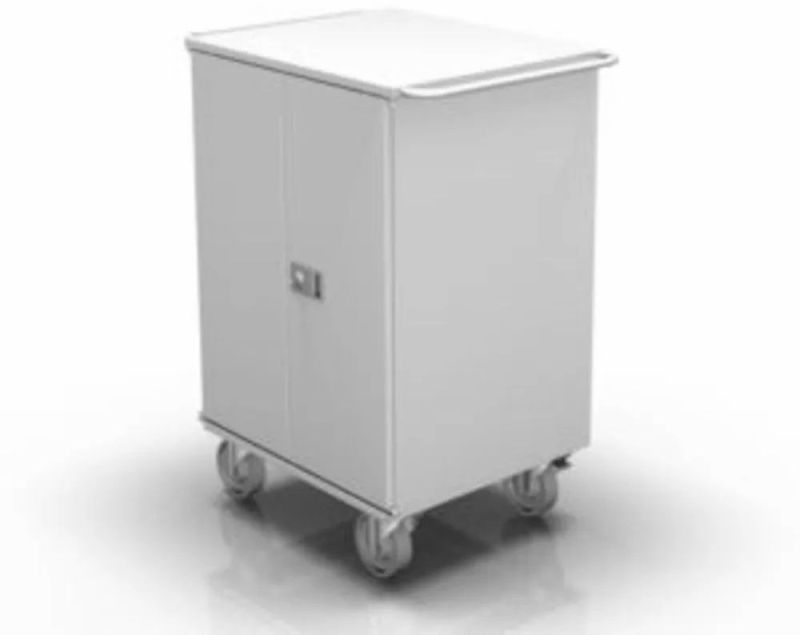

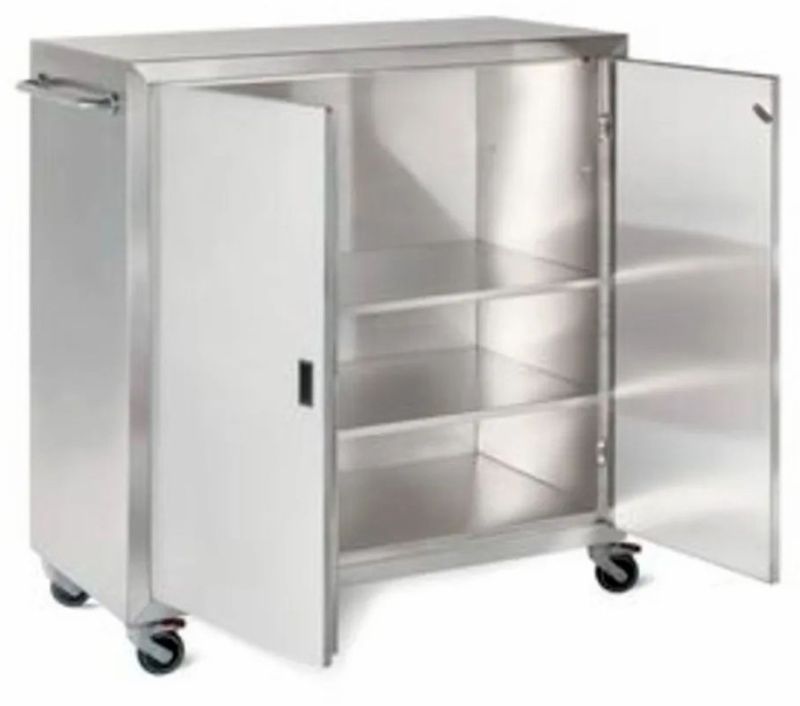

Chemietron” designed for Mobile Trolley transferring sterile products under ISO Class 5 (Class 100) particle free work area. The work area is continuously supplied with positive pressure HEPA filtered recirculated/once through horizontal / vertical air flow.
Technical Specifications:
- Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREA
- Air Velocities: 0.45 ± 0.05 mps (90 ± 20 FPM)
- Air Flow: Horizontal / Vertical
- Noise Level: Less than 65 dB
- Vibration Level: Minimum
- Power Supply: 230 V AC, 1-Ø, 50 Hz
- MOC: GI Powder Coated / SS-304 / SS-316 / Combination
- Two Stage filtration: EU7 - Intermediate Filter (95% down to 3 micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
- Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
- Fluorescent Lights
- UV Light
- Differential Pressure Gauges: 01 No. (HEPA Filter)
- Battery back-up with Inverter (for 30 mic. to Three hour)
- SS Castor wheel with PU Coated (with locking arrangement)
- ON/OFF Switches (BL / FL / UV)
- DOP Port: DQ, IQ, OQ, PQ Documentation
Other details:
- Once through / Re-circulating operation
- Side wall with SS / Flexible PVC Strip / Poly carbonate / Acrylic Sheet)
- Velocity display with High / Low Alarms
- Filter chocking alarms
- Auxiliary Powder Socket: 5/15 Amp for external equipment
- FLP Electrical Goods for Explosion
- Custom design available for sterilized drum transfer
