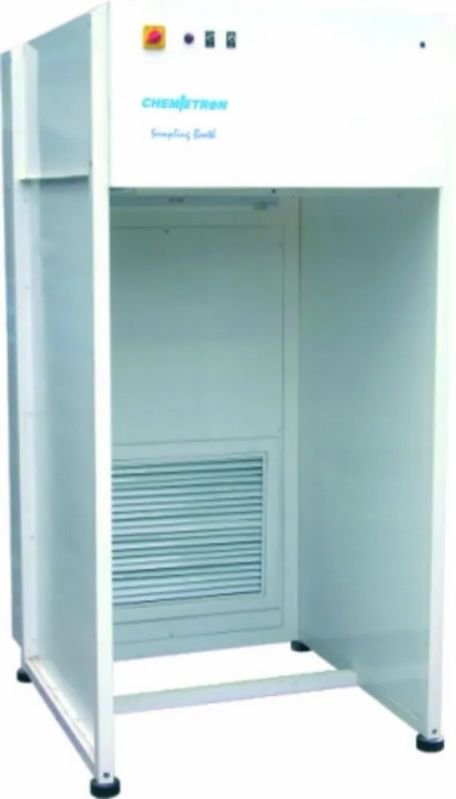

Sampling & Dispensing Booths

We are one of the leading exporters, manufacturers, suppliers, traders and importers of Sampling/Dispensing Booth- RALF Unit. The offered sampling and dispensing booth is highly liked for removing the powder contaminants and thus cleans the environment. Our supplied sampling and dispensing booth is made from superior grade raw materials.

Features:

• Easy to clean
• Zero risk of powder inhalation
• Multi stage filtration

Technical Specifications:

• Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREA
• Air Velocities: 0.45 ± 0.05 mps (90 ± 20 FPM)
• Air Flow: Vertical
• Noise Level: Less than 65 dB
• Vibration Level: Minimum
• Power Supply: 230V AC, 1-Ø, 50HZ
• MOC: GI Powder Coated / SS-304 / SS-316
• Inside: Side panel with all three side with coving
• Three Stage filtration
• EU4 – Pre-filters (90% down )
• EU7 - Intermediate Filter (95% down )
• EU14 - HEPA Filter - Supply / Exhaust (99.999% down
• Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
• Fluorescent Lights with Milky White Diffuser
• Differential Pressure Gauges :02 Nos. (Intermediate & HEPA Filter)
• ON/OFF Switches (BL / FL / UV)
• Auxiliary Powder Socket : 5/15 Amp for external equipment
• DOP Port
• DQ, IQ, OQ, PQ Documentation

Options and Accessories:

A wide range of configurations to suit any containment application:

• Double skinned PUF Insulated side panels with/without view windows
• Stainless steel perforated grille for HEPA Filter
• Front Flexible Strip PVC Curtains
• SS Perforated Platform for keeping Weighing Scale(Fix /Moveable)
• Velocity display with High / Low Alarms
• Filter chocking alarms
• FLP Electrical Goods for Explosion
