Leading Manufacturers, Exporters and Wholesaler of Dynamic Pass Box and Pharmaceutical Pass Box from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Size | 2 X 2 X 2 |
| Material | Main Body - SS-304, Door - SS-304 |
| Brand Name | Chemietron |
| Voltage | 415+/- 5 V |
| Door Type | Swing Type Double Door With View Panel |
| Velocity | 15 +/- 5 M/s |
| Air Cleanliness | ISO Class 5 / Class 100 / M 3.5 AREA |
| Air Velocities | 0.45 +/- 0.05 Mps (90 +/- 20 FPM) |
| Air Flow | Horizontal / Vertical |
| Noise Level | Less Than 65 DB |
| Vibration Level | Minimum |
| Power Supply | 230 V AC, 1-Ø, 50 Hz |
| MOC | GI Powder Coated / SS-304 / SS-316 / Combination |
| Internal Coving | For Easy Cleaning |
| Filtration | EU7 - Intermediate Filter (95% Down To 3 Micron), EU14 - HEPA Filter (99.999% Down To 0.3 Micron) |
| Motor-Blower | Statically & Dynamically Balanced With Isolator |
| Lights | Fluorescent Lights, UV Light |
| Differential Pressure Gauges | 01 No. (HEPA Filter) |
| DOP Port | DQ, IQ, OQ, PQ Documentation |
| Bottom | With Heavy Roller Base For Drum / Material Transfer |
| Flush Level | With Ground Level |
| Flange | For One Side Flush Mount In Clean Room Partition / Wall |
| FLP Electrical Goods | For Explosion Area |
| Model | CDPB-24/24, CDPB-30/30, CDPB-36/36 |
| Working Area | 610 X 610 X 610, 760 X 760 X 760, 915 X 915 X 915 |
| Overall Dimension | 740 X 660 X 1275, 910 X 810 X 1425, 1065 X 980 X 1580 |

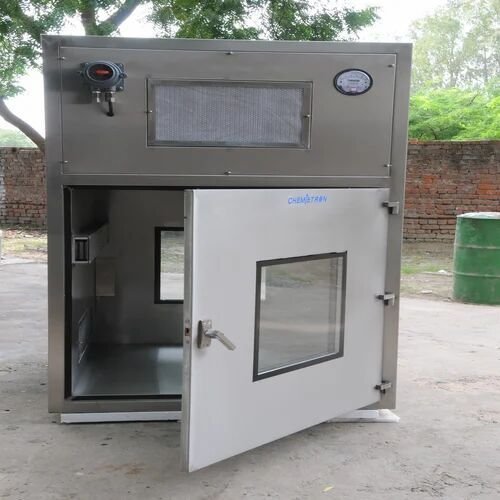

Our world class range of Dynamic Pass Box are designed in conformation to the international standards and are used for transferring the material from and into the classified clean room without contaminating the air of clean room. In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.
Technical Specifications:
Other details:
Specifications:
| Model | Working Area w x d x h | Over All Dimension W X D X H |
| CDPB-24/24 | 610 x 610 x 610 | 740 x 660 x 1275 |
| CDPB-30/30 | 760 x 760 x 760 | 910 x 810 x 1425 |
| CDPB-36/36 | 915 x 915 x 915 | 1065 x 980 x 1580 |
| Business Type | Manufacturer, Exporter, Supplier |
| Color | Silver |
| Country of Origin | India |
| Type | Pass Box |
| Material | Commercial Board |
| Packaging | Box |
| Application | Pharmaceutical |
| Feature | Laminated External & Internal Surfaces,Electrically Interlocked Type Doors,Hinged Door With Glass Viewing Window,U.V. & Fluorescent Light And HEPA Filter,Standard Size Of 24 |

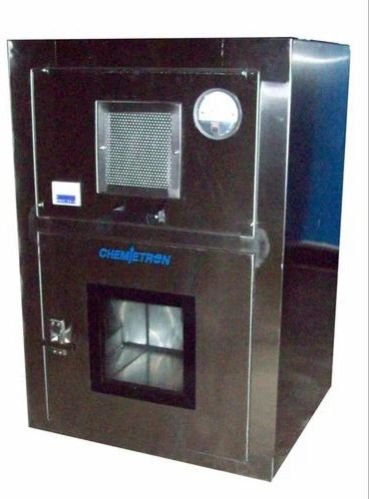

Keeping pace with cutting edge technology, we offer superior quality Pass Box (Static & Dynamic), which are widely used for transferring the material from and into the clean room, without contaminating the air of clean room & without having to open room door. These pass boxes can be installed on the wall between the clean room and other room. We offer these pass boxes in different standard and customized sizes at market leading prices.
Features:
