Leading Manufacturers, Exporters and Wholesaler of Ceiling Mounted Laminar Air Flow Unit, Horizontal Laminar Flow Bench, Laf Work Station, Laminar Air Flow Workstation with SS Legs, Pharmaceutical Laminar Air Flow System, Reverse Laminar Air Flow Unit, Stainless Steel Laminar Air Flow, Vertical Laminar Air Flow Bench and Vertical Laminar Airflow Unit from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Ceiling Mounted |
| Application | Industrial |
| Material | Galvanized Iron |
| Efficiency(%) | 99.99% |
| Brand Name | Chemietron |
| Size | 2' X 2' X 2', 3' X 2' X 2', 4' X 2' X 2', 6' X 2' X 2' |
| Height | As Per Requirement |
| Air Flow | 850 X 650 |
| Country of Origin | Made In India |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Horizontal |
| Material | GI Powder Coated/ SS 304 |
| Application | Pharmaceutical Industry |
| Brand Name | Chemietron |
| Color | SS 304 Finish |
| Voltage | 225+/- 5 V |
| Power Supply | 225 +/-5 V, 50 Hz, Single Phase |
| Air Flow | 0.45 +- 0.1 M/sec |
| Velocity | 15+/- 5 M/s |
| Working Area | 2' X 2' X 2', 3' X 2' X 2', 4' X 2' X 2', 6' X 2' X 2' |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Vertical |
| Application | Industrial,Clean Room |
| Surface Finish | Powder Coated |
| Brand Name | Chemietron |
| Size | 2' X 2' X 2', 3' X 2' X 2', 4' X 2' X 2', 6' X 2' X 2' |
| Height | 2 Feet |
| Air Flow | 0.45 +- 0.1 M/sec |
| Power | 215 +/-5 V, 50 Hz, Single Phase |
| MOC | GI Powder Coated/ SS 304 |
| Country of Origin | Made In India |

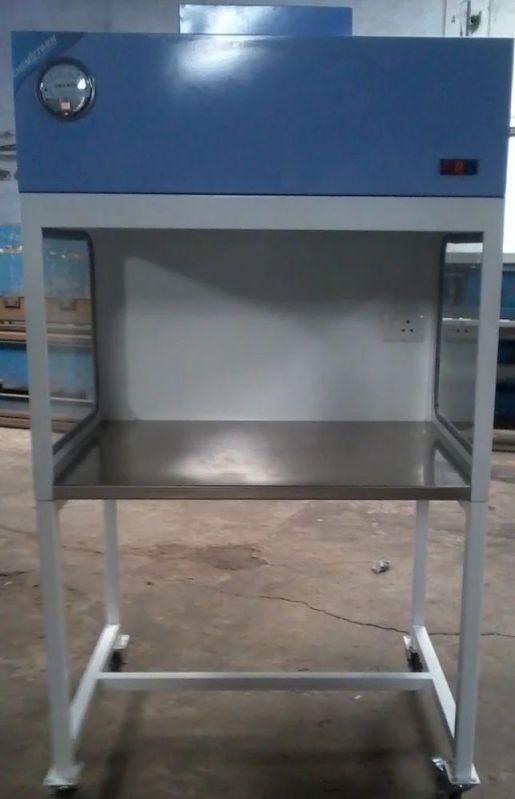

The LAF Work Station is a versatile and ergonomic workspace designed to enhance productivity and comfort. Featuring a sleek design, it incorporates ample storage solutions and adjustable components to accommodate various work styles. Crafted from high-quality materials, this workstation ensures durability while providing a professional aesthetic suitable for any office environment. Its innovative layout promotes organization and efficiency, making it an ideal choice for both individual and collaborative tasks.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Laminar Air Flow Workstation |
| Material | Stainless Steel |
| Application | Laboratory |
| Surface Finish | GI Coated |
| Brand Name | Chemietron |
| Voltage | 220-240V |
The Laminar Air Flow Work Station is designed to provide a sterile environment for various laboratory applications. Featuring robust stainless steel legs, this workstation ensures stability and durability while facilitating easy cleaning and maintenance. Its advanced air filtration system effectively minimizes contamination, making it ideal for sensitive procedures in research and clinical settings. The ergonomic design enhances user comfort, promoting efficiency and precision in handling delicate materials.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Chemietron |
| Type | Reverse |
| Usage/Application | Hospital |
| Material | GI Powder Coated/ SS 304 |
| Air Flow | 90 +- 20 FPM |
| Model Name/Number | RLAF-22 |
| Height | 2Foot |
| Country of Origin | Made In India |
Flow Direction - Reverse
Material of Construction - GI Powder Coated/ SS 304
HEPA Filter – Mini pleated HEPA Filter down to 0.3mic. Particulate at anefficiency of 99.997% (EU14) duly tested on
DOP tested
Pre-Filters - Pre-Filter down to 5mic. Particulate at an efficiency of 75 to 80% (EU6) enclosed in aluminum frame with epoxy sealing (Washable Type)
Pressure Measurement - 1 No. Meghnehalic Pressure Gauge to check the pressure drop across the HEPA filter.
Electrical - On/Off SwitchFluorescent LightU V Light
Power supply - 230 V, 50Hz, Single Phase
Documents - DQ, IQ, OQ (OUR FACTORY TESTED)

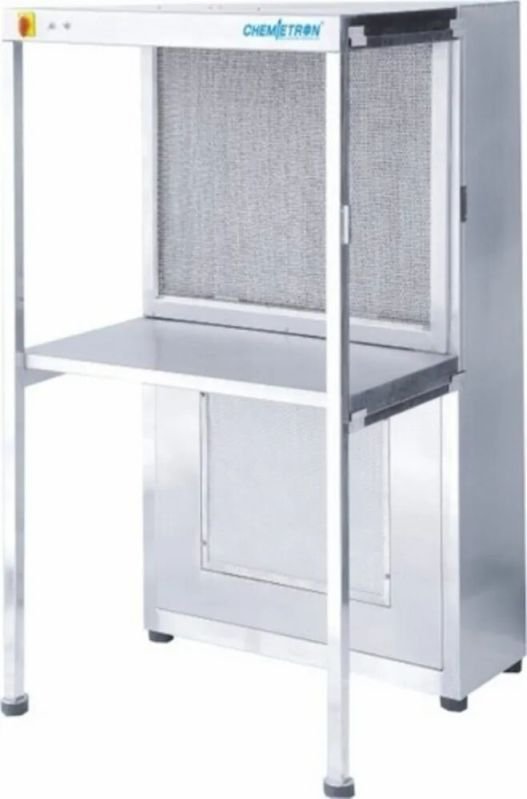

| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Chemietron |
| Application | Industrial |
| Type | Vertical |
| Material | GI Powder Coated/ SS 304 |
| Air Flow | 0.45 +- 0.1 M/sec |
| Sizes | 2' X 2' X 2', 3' X 2' X 2', 4' X 2' X 2', 6' X 2' X 2' |
| Capacity | Cleanliness: Class 100 / ISO CLASS 5 / M 3.5 AREA |
| Production Capacity | Large Production Capacity To Meet Your Requirement |
We are offering an excellent quality of Laminar Air Flow Bench (Vertical / Horizontal). A Unique combination of the most aerodynamic design with the highest product protection, operator comfort, versatility and reliability.Delivered with a strong table top made of stainless steel or melamine as a standard choice.
Technical Specifications
* Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
* Air Velocities : 0.45 ± 0.05 mps (90 ± 20 FPM)
* Air Flow : Horizontal / Vertical
* Noise Level : Less than 67 dB
*Vibration Level : Minimum
* POWER SUPPLY : 230V AC, 1-Ø, 50HZ
* MOC : GI Powder Coated / SS-304 / SS-316
* Side panel with Glass / Polycarbonate / Acrylic
* Two Stage filtration
* EU7 - Intermediate Filter (95% down to 3 micron)
* EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
* Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
* Fluorescent Lights with Milky White Diffuser
* Differential Pressure Gauges : 01 No. (HEPA Filter)
* ON/OFF Switches (BL / FL / UV)
* Auxiliary Powder Socket : 5/15 Amp for external equipment
* DOP Port
* DQ, IQ, OQ, PQ Documentation
Additional Information:
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Ceiling |
| Application | Hospital |
| Surface Finish | Powder Coated |
| Material | Stainless Steel |
| Brand Name | Chemietron |
| Noise Level (dB) | Below 65 Db |
| Air Changes | Positive Pressure In OT |
| Power Supply | 230V AC |
| Power Consumption | 50Hz |
| Built Type | Stainless Steel 304, Aluminum Powder Coated |
| Country of Origin | Made In India |
The OT Laminar Air Flow System is designed to provide a sterile environment for surgical and medical procedures. Utilizing advanced filtration technology, it ensures a continuous flow of clean, filtered air, minimizing the risk of airborne contaminants. The system is engineered for optimal performance, featuring adjustable airflow patterns and user-friendly controls, making it suitable for various operating room configurations. Its robust construction and low maintenance requirements enhance reliability and longevity, making it an essential component in modern healthcare facilities.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | GI Powder Coated/ SS 304 |
| Brand Name | Chemietron |
| Application | Pharmaceutical Industry |
| Color | SS 304 Finish |
| Air Velocity | 0.45 +- 0.1 M/sec |
| Air Cleanliness | ISO Class 5 / Class 100 / M 3.5 AREA |
| Air Velocities | 0.45 +- 0.05 Mps (90 +- 20 FPM) |
| Air Flow | Horizontal / Vertical |
| Noise Level | Less Than 67 DB |
| Vibration Level | Minimum |
| Power Supply | 230 V AC, 1-Ø, 50 Hz |
| MOC | GI Powder Coated / SS-304 / SS-316 |
| Side Panel | Glass / Polycarbonate / Acrylic |
| Two Stage Filtration | EU7 - Intermediate Filter (95% Down To 3 Micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% Down To 0.3 Micron) |
| Motor-Blower | Statically & Dynamically Balanced With Isolator To Reduce Noise Level |
| Lights | Fluorescent Lights With Milky White Diffuser |
| Differential Pressure Gauges | 01 No. (HEPA Filter) |
| ON/OFF Switches | BL / FL / UV |
| Auxiliary Power Socket | 5/15 Amp For External Equipment |
| DOP Port | DQ, IQ, OQ, PQ Documentation |
| Front Door | Counter Weighted / Hinged / Flexible PVC Sheet |
| Hour Meter | For UV |
| Air/Gas Cock | Included |
| Velocity Display | With High / Low Alarms |
| Filter Choking Alarms | Included |
| FLP Electrical Goods | For Explosion |
A Unique combination of the most aerodynamic Laminar Airflow Bench design with the highest product protection, operator comfort, versatility and reliability. Delivered with a strong table top made of stainless steel or melamine as a standard choice.
Technical Specifications:
Other details:
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Pharmaceutical Industry |
| Brand Name | Chemietron |
| Material | GI Powder Coated/ SS 304 |
| Color | SS 304 Finish |
| Air Velocity | 0.45 +- 0.1 M/sec |
| Velocity | 0.45 +- 0.1 M/sec |
A Unique combination of the most aerodynamic Laminar Airflow Bench design with the highest product protection, operator comfort, versatility and reliability. Delivered with a strong table top made of stainless steel or melamine as a standard choice.
