Dust & Particle Control Systems

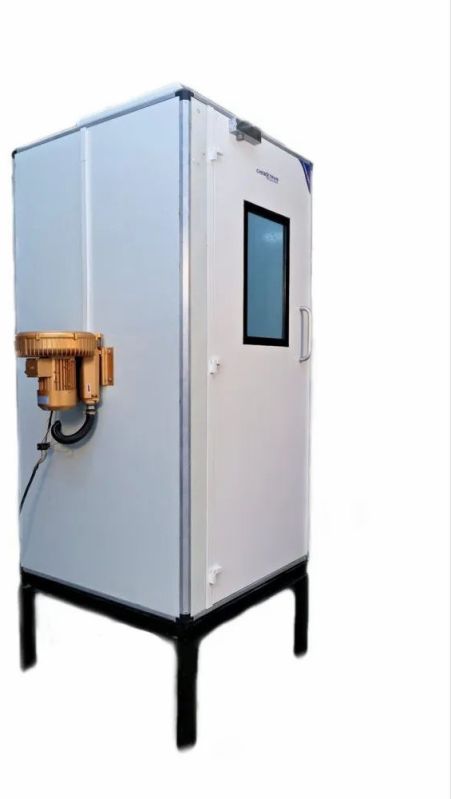

Personnel Cleaning - De dusting booth

De dusting components, Clothing, Personnel Body Without Contaminating Personnel or the working environment.
Comprising with PUF insulated door Body, Air Intake Fan Filter Unit, Nozzle with flexible hose, grating florring, Dust collector with centrifugal blower, filter and collection bin etc. complete with internal piping etc.
* Power requirement : 2 HP, 3 Phase, 415 V

Features Include :-

• Downflow air movement blows air from worker and into Grating Flooring
• High volume 100 CFM, Clean and Filtered air
• Modular Construction PUF infill body
• Interior lighting
• Fresh air fan filter Unit
• Entry/Exit door hinged, With door closure and view window
• Dust extraction unit

Application :-

• Fiberglass boat manufacturing
• Mining and quarrying operations
• Industrial minerals Processing
• Construction Sites
• Cement and Plasterboard Manufacturing
• Metals Recycling and Refining
• Paper Manufacturing and Processing
• Textile Plants.... and many more

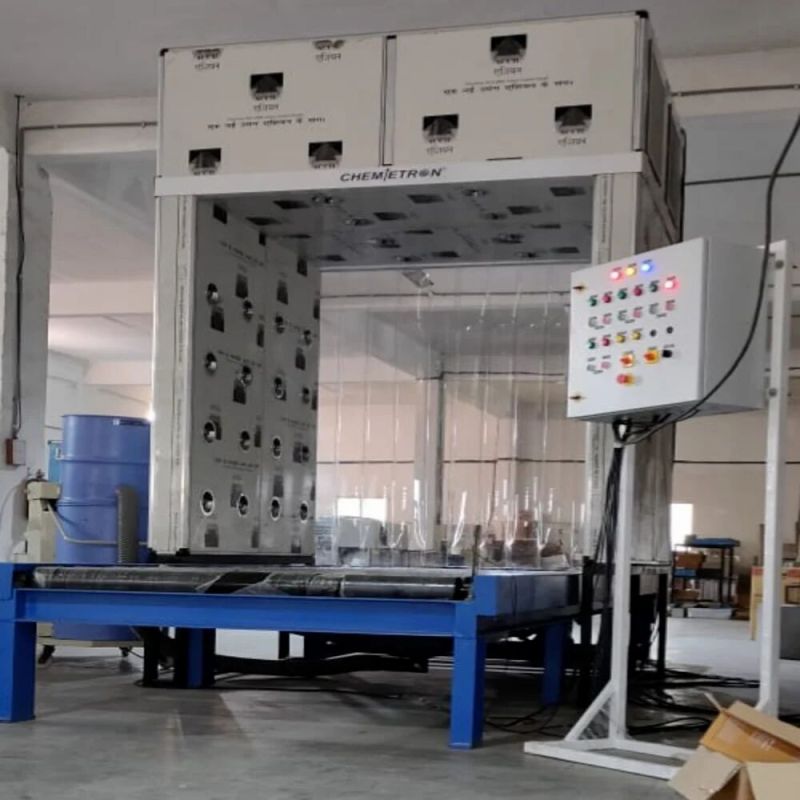

What is a Dedusting Tunnel

Dedusting Tunnels are used to remove loose particles of dust and particulate matter that accumulate on raw material containers like drums, cartons boxes, sacks or bags prior to sampling or dispensing.

Such tunnels are designed to allow entry of objects from one end over a rolling conveyor with air nozzles blowing high pressure air over the objects thereby removing any loose particles over the entering object. In addition to air nozzles dedusting tunnels can also feature rotating brushes in horizontal & vertical assembly to ensure ever greater protection of cleanroom or raw material contamination.

The tunnels are designed to perform consistently at low maintenance and high reliability. These tunnels can be designed to operate autonomously or respond on demand, depending upon the requirements.

Our firm is manufacturing qualitative Pulse Jet Dust Collectors which are used as dust collector for the purpose of removing dry particles from process, general ventilation air and for the recovery of product from many other manufacturing processes. air dynamite supplies pulse jet dust collectors are widely used by industries such as cement, iron & steel, chemical, food and dairy and many finds application in wide variety of process equipments for chemical dyes, cement, pharmaceutical, pigments fertilizers, petrochemicals, thermal stations and other industries for various dust emitting.Cleaning cycle start through pressure periodic and momentary jet in reverse direction in filter elements. Timing is controlled by electronic sequence timer and pneumatic valve to provide efficient and continuous flow from dust collector.
